RV Murphy Bed Mattress Upgrade: Is Memory Foam Better?

https://www.youtube.com/watch?v=LRKwTAG1eNI | RV Murphy bed mattress Summary and Key Takeaways

Meta description: See how Over the Hill Hikers replaced a failed RV spring mattress with an 8-inch Zinus memory foam bed, plus fit, safety, cost, and care advice for 2026.

An RV Murphy bed mattress can transform an uncomfortable fold-down bed, but comfort is only part of the decision. Your replacement must also match the bed platform, mattress weight limit, folding mechanism, cabinet depth, available clearance, and ventilation needs.

In the video Replacing the Murphy Bed mattress with a Memory Foam upgrade in our Rockwood Mini Lite 2509s, Over the Hill Hikers explain that the original spring mattress lasted less than a year. They replace it with an 8-inch Zinus memory foam comfort pressure-relief mattress, then make the bed and return the Murphy bed to its upright position.

That practical example applies to more than one Rockwood trailer. A Murphy bed, wall bed, or fold-down bed is space-saving furniture whose mattress and mechanical frame must operate as one system. This review therefore looks beyond the successful installation shown on camera and considers weight, safety, durability, moisture, mechanism strain, and long-term care.

Why This RV Murphy Bed Mattress Upgrade Matters

The main lesson from the Over the Hill Hikers project is straightforward: replacing a prematurely worn spring mattress can make an RV Murphy bed more usable, provided the new mattress is compatible with the bed. The video begins at approximately 00:00 with the reason for the change—the spring mattress in their Rockwood Mini Lite 2509S did not last a year.

The replacement is an 8-inch Zinus memory foam mattress. At approximately 00:15–00:30, the creator shows the compressed package being opened and placed on the platform. Later, at roughly 01:40–02:00, the fully made bed is raised successfully. That is useful evidence of fit in this specific trailer, but it is not proof that every RV Murphy bed mattress with the same advertised thickness will work in another model.

Before ordering, measure the platform and cabinet, identify the bed mechanism, and compare the new mattress weight with the original. A memory foam mattress may be thicker, denser, or heavier than the spring product it replaces. That extra weight can affect a piston lift system, spring mechanism, hinges, brackets, and retention straps.

Your evaluation should cover these questions:

• Will the mattress fit flat on the bed frame?
• Will the cabinet close with bedding attached?
• Can the bed be raised and lowered under control?
• Does the platform allow enough airflow to limit moisture and odor?
• Will the replacement remain comfortable and stable after months of folding?

According to Over the Hill Hikers, their installation was complete and the bed could be stored upright without an issue. Treat that result as a helpful starting point, then perform your own compatibility and safety checks.

TL;DR: The Key Takeaways From the Video

The video demonstrates a simple replacement process, but several practical checks should happen before you copy it. The featured RV Murphy bed mattress is an 8-inch Zinus memory foam model. Check the current dimensions, weight, materials, warranty, and recovery instructions at the Zinus website before purchasing because product specifications can change.

1. Remove existing bedding and prepare the Murphy bed platform.
2. Unroll the vacuum-sealed mattress on the platform.
3. Carefully remove the outer plastic without cutting the foam.
4. Allow the mattress to expand according to the manufacturer’s instructions.
5. Add the mattress pad, sheets, blanket, comforter, and pillows.
6. Secure approved retention straps and raise the bed slowly.
7. Check that the mattress and bedding do not rub the cabinet or obstruct the lock.

At approximately 00:15–02:00, the creator shows unpacking, expansion, bedding, and the final upright position. A particularly useful technique appears around 00:55–01:20: sliding the mattress temporarily off the platform creates more room for making the bed.

Remember what the video does not establish. It does not independently test noise, stability, heat retention, foam recovery time, body impressions, long-term durability, or piston and hinge performance over repeated cycles. Before ordering your RV Murphy bed mattress, measure the platform, confirm folded clearance, and compare mattress weight with the bed mechanism’s rated capacity.

Choosing the Right RV Murphy Bed Mattress

Spring and memory foam mattresses solve different problems. Coils generally provide more airflow and familiar bounce, while memory foam conforms closely to your body and tends to reduce motion transfer. Foam can feel quieter and more pressure-relieving, but dense foam may retain more heat and weigh more than a similarly sized spring mattress.

The 8-inch thickness shown by Over the Hill Hikers is a useful reference, not a universal rule. An 8-inch RV Murphy bed mattress may fit one vertical bed and prevent another cabinet from closing. Horizontal Murphy beds can have a different pivot path, and an RV platform may have less depth than a residential full-size Murphy bed.

Measure these points before shopping:

• Platform length and width.
• Maximum approved mattress thickness.
• Mattress weight and the bed mechanism’s load range.
• Cabinet interior depth with trim, hinges, straps, and bedding included.
• Clearance from shelving, doors, drawers, windows, and nearby furniture.
• Space needed to stand beside the bed while lowering it.

A simple calculation helps: available folded depth minus mattress thickness must leave room for bedding, cabinet trim, hinges, retention hardware, and a safety margin. Measure with cabinet doors and drawers fully open, because partial opening can hide an obstruction.

Bed size also changes the decision. A twin Murphy bed suits compact rooms and narrow RV layouts. A full-size Murphy bed works well in a guest room or small bedroom, while a queen-size Murphy bed is more common in larger RVs, studio apartments, home offices, and rooms where two people will sleep regularly.

Plan for ventilation too. Use a breathable mattress pad, inspect whether the bed platform blocks airflow, and open the bed periodically during humid or cold-weather camping. Keeping a memory foam mattress compressed against a closed cabinet for long periods can trap moisture and encourage odor.

How Murphy Bed Mechanisms Affect Mattress Compatibility

Your mattress choice must match the bed mechanism, not just the sleeping surface. A piston lift system uses gas-assisted struts to control movement and usually requires the mattress to stay within a specified weight range. A spring mechanism uses stored mechanical tension and may respond differently as the mattress load changes.

A heavier memory foam mattress can make a bed difficult to lift, cause it to descend unexpectedly, or increase stress on hinges, brackets, and the bed frame. A mattress that is too light can also be a problem if the mechanism was balanced for a heavier load. Never force an overloaded bed shut or compensate for poor balance by removing safety hardware.

A vertical Murphy bed stores the mattress upright inside a tall cabinet. It generally needs adequate ceiling height and forward clearance. A horizontal Murphy bed pivots along its long side, often requiring more wall width and side clearance but less ceiling height. The same RV Murphy bed mattress may not suit both arrangements.

Before installation, read the mechanism manual and record its requirements for:

• Maximum and minimum mattress weight.
• Maximum thickness and permitted flexibility.
• Retention straps or clips.
• Piston, spring, or tension adjustments.
• Safety locking mechanism operation.

The video shows that the Zinus mattress fit and allowed the bed to close at approximately 01:35–02:00. It does not provide long-term piston, spring, hinge, or bracket durability testing.

Symptom	Possible cause	Action
Bed drops suddenly	Weak piston, incorrect load, or damaged spring	Stop using it and inspect the mechanism or contact the manufacturer.
Excessive lifting force	Mattress too heavy or mechanism out of adjustment	Verify the weight rating; do not force the bed.
Cabinet rubbing	Excess thickness, shifted mattress, or blocked bedding	Remove bedding, recenter the mattress, and remeasure clearance.
Rattling	Loose brackets, bolts, straps, or stored objects	Inspect hardware and clear nearby storage.
Mattress shifts while folding	Incorrect straps or a slick platform	Use manufacturer-approved restraints and check alignment.

Installation: A Practical DIY Murphy Bed Mattress Replacement

Installing an RV Murphy bed mattress should be treated as a controlled mechanical project rather than a quick unpacking task. Remove bedding, support or lock the bed, inspect the platform, and keep hands, cords, and loose objects away from pistons, springs, hinges, and pinch points.

1. Prepare the bed. Remove the old mattress and all bedding. Lock or support the bed according to the manufacturer instructions.
2. Inspect the platform. Look for broken slats, sharp screws, blocked ventilation openings, loose fasteners, and signs of moisture.
3. Compare dimensions. Confirm the replacement’s length, width, thickness, and weight against your measurements and the mechanism manual.
4. Unpack carefully. As shown around 00:15–00:40, unroll the vacuum-sealed Zinus mattress on the platform and remove the plastic carefully.
5. Allow full expansion. Follow the current manufacturer’s recovery time. Don’t fold, sleep on, or heavily load the mattress before it reaches its intended shape. Ventilate the RV during off-gassing.
6. Make the bed. Over the Hill Hikers use a mattress pad, fitted sheet, top sheet, blanket, comforter, and pillows at approximately 01:10–01:40.
7. Test movement. Fasten retention straps, raise the bed slowly, inspect cabinet contact, and confirm the safety lock engages.

The creator’s technique of sliding the mattress temporarily off the platform makes bedding easier, especially in a narrow RV. Bulky comforters and pillows can still prevent the cabinet from closing even when the mattress itself fits, so test the complete sleeping setup rather than the bare foam alone.

Safety Checks for an RV Wall Bed or Home Murphy Bed

A wall bed carries moving weight above a person, so anchoring and controlled movement matter as much as mattress comfort. In an RV, vibration and road forces can gradually loosen fasteners. Confirm that the cabinet and frame are secured to suitable studs, reinforced structural points, or the anchoring system specified by the manufacturer.

Before using a new RV Murphy bed mattress, inspect pistons, springs, pivot hardware, bolts, brackets, straps, and wall anchors. Look for corrosion, bent parts, frayed webbing, loose screws, uneven movement, or a gap developing between the cabinet and wall.

Run this test while standing to the side:

1. Operate the bed empty and confirm smooth movement.
2. Install the mattress and approved bedding.
3. Raise and lower it slowly while keeping hands away from pinch points.
4. Check for cabinet contact, rubbing, rattling, or sudden descent.
5. Verify the positive safety locking mechanism before storing it.
6. Repeat the test after traveling a short distance and recheck all hardware.

Keep the lock engaged when the bed is stored, use only manufacturer-approved straps, and never allow a child or pet to play beneath or operate the fold-down bed. A custom DIY Murphy bed needs verified wall structure, correctly rated hardware, a positive lock, and clear operating instructions.

The video demonstrates the finished bed being put upright at approximately 01:40–02:00. That single successful cycle is not a safety certification. Perform repeated checks in your own RV or home installation.

Storage Ideas Around a Rockwood Mini Lite Murphy Bed

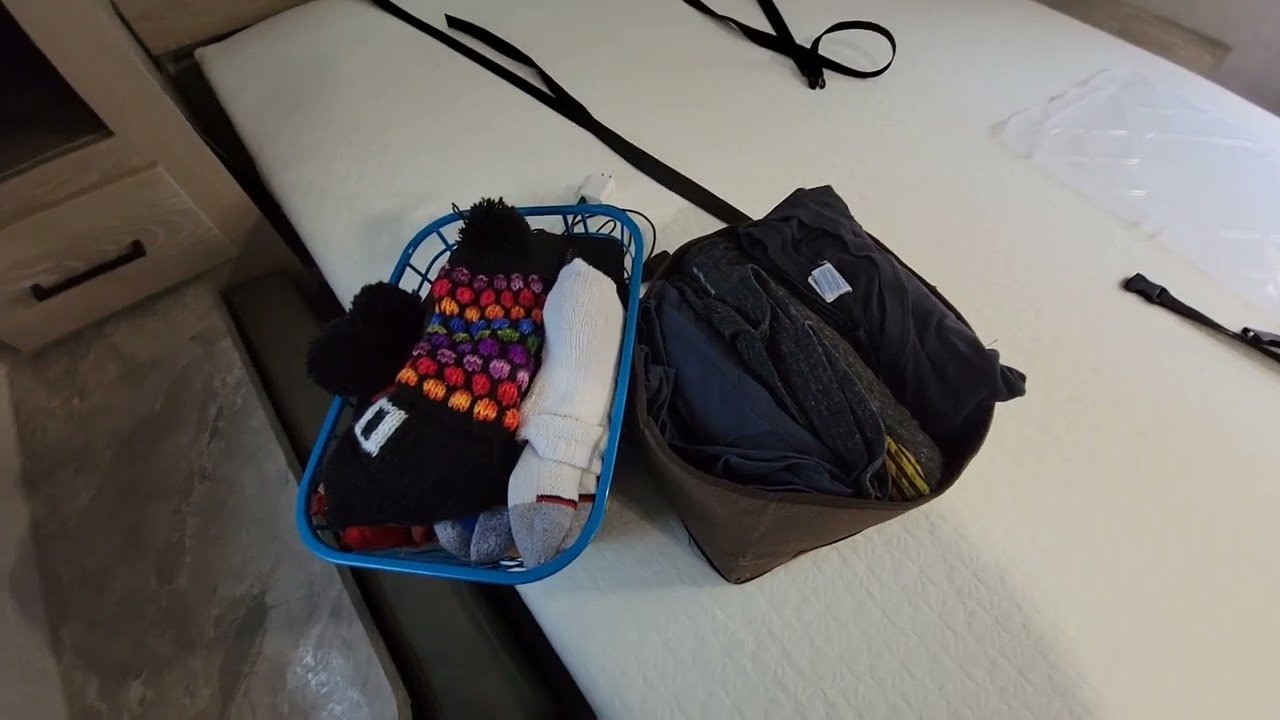

Over the Hill Hikers also show how organization around the bed can improve daily use. At approximately 00:40–01:05, deep plastic containers slide toward the rear of a side closet and keep miscellaneous objects contained. A second container holds electronics, including a wireless phone charger attached to a small strap before the bin is returned to storage.

This matters because loose objects can fall onto the mattress or into hinges, pistons, springs, and folding surfaces. Built-in storage, shelving, and cabinet compartments should remain clear of the bed’s travel path. Electronics should be separated from heavier objects so cords don’t become trapped when the wall bed moves.

Use this organization plan:

1. Measure closet depth, height, door clearance, and the bed’s swing path.
2. Choose lidded containers that slide fully into place without touching hinges or trim.
3. Label electronics separately and secure chargers, cables, and adapters.
4. Store heavier items low and near the RV’s center of mass.
5. Raise and lower the bed with every bin in position.
6. Recheck that no container can fall onto the mattress or block the safety lock.

Don’t overload a side cabinet simply because a deep container fits. RV weight distribution affects towing and handling, while a concentrated load can strain cabinet hardware. Storage is successful only when it remains stable during travel and invisible to the bed mechanism.

Comfort, Durability, and Cost: What the Video Does Not Test

The video confirms a completed installation, not months of sleep testing. It does not independently measure spinal support, heat retention, odor, edge support, foam durability, body impressions, or noise. It also does not test whether repeated folding changes lifting effort or causes cabinet contact.

After installing an RV Murphy bed mattress, create a 30- to 90-day review plan. Check for sagging, permanent impressions, moisture beneath the foam, lingering odor, shifting, new rattles, and changes in piston or spring behavior. Record the number of successful folding cycles during the first month and compare perceived lifting effort with the original mattress.

Cost category	What to include	Why it matters
Basic replacement	Mattress, mattress pad, sheets, and shipping	Usually the lowest-cost route when the existing frame is sound.
Unexpected replacement cost	Return fees, replacement pistons, springs, straps, or brackets	Can change the total if the new mattress alters the mechanism load.
Professional installation	Labor, structural inspection, and hardware	Useful when anchors, wall structure, or mechanism adjustments are uncertain.
Custom Murphy bed build	Cabinet, bed frame, hardware, desk attachment, and installation	Costs substantially more but allows a tailored studio apartment or home office layout.

Memory foam density affects weight, support, recovery time, and heat—not just advertised thickness. Compare the complete specification sheet. Review warranty and return terms before cutting, modifying, or permanently fastening anything.

A Room-Measurement and Clearance Checklist

Use this worksheet before buying an RV Murphy bed mattress or planning a wall bed for a studio apartment, small bedroom, guest room, or home office. Write down the measurements instead of relying on a product label such as twin, full, or queen.

• Mattress width: ______
• Mattress length: ______
• Mattress thickness: ______
• Mattress weight: ______
• Platform width and length: ______
• Cabinet interior depth: ______
• Ceiling height: ______
• Wall width: ______
• Front clearance: ______
• Side clearance: ______
• Desk or furniture swing-path clearance: ______

Use these formulas: usable mattress depth = cabinet interior depth − hardware allowance − bedding allowance − safety margin. Also, usable wall width must exceed bed width plus trim and anchoring space. For a desk attachment, include desk depth, chair position, monitor height, shelving, and the bed’s complete swing path.

Vertical Murphy beds typically need more ceiling height and front clearance. Horizontal Murphy beds may suit low ceilings but need greater side-to-side wall width. A twin Murphy bed can fit a compact RV or small room, while a full-size Murphy bed or queen-size Murphy bed needs more floor area during deployment.

Before ordering, use painter’s tape or cardboard to mark the mattress footprint, cabinet edges, door swing, walking route, and nearby shelving. Then perform this final check:

1. Verify platform dimensions twice.
2. Confirm mattress thickness and weight limits.
3. Check the mechanism manual.
4. Review the return policy.
5. Choose a ventilation plan.
6. Clear storage from the folding path.
7. Confirm that the safety locking mechanism is accessible.

Final Verdict and Replacement Checklist

The Over the Hill Hikers video supports a straightforward upgrade path for owners whose original RV spring mattress failed early. Select a compatible replacement, let compressed foam expand fully, make the bed, and test the Murphy bed before regular use.

As the creator demonstrates, sliding the mattress aside creates room to install bedding more easily, while organized side-closet containers preserve usable storage beside the bed. Those small details may make the difference between a replacement that looks good on installation day and one that works comfortably during regular camping.

Use this seven-step checklist:

1. Measure the platform, cabinet, and folded clearance.
2. Verify mattress thickness, weight, and mechanism limits.
3. Inspect the bed frame, anchors, pistons, springs, straps, and lock.
4. Unpack, ventilate, and allow the mattress to expand fully.
5. Install bedding without exceeding the cabinet’s clearance.
6. Test controlled movement and the safety locking mechanism.
7. Monitor comfort, moisture, movement, noise, and lifting effort for days.

Document the original spring mattress failure, new mattress specifications, mechanism behavior, receipts, and warranty terms. The practical lesson is simple: comfort is only one part of an RV Murphy bed mattress upgrade. Correct clearance, controlled movement, safe anchoring, ventilation, and long-term observation determine whether the change remains successful.

Frequently Asked Questions

Can any memory foam mattress be used on a Murphy bed?

No. Confirm the mattress dimensions, thickness, weight, flexibility, ventilation needs, and compatibility with the specific bed mechanism and retention system. A mattress can feel comfortable yet still overload a piston lift system or prevent the cabinet from closing.

Is an 8-inch mattress suitable for a Rockwood Mini Lite 2509S?

The video shows Over the Hill Hikers installing an 8-inch Zinus memory foam mattress successfully in their Rockwood Mini Lite 2509S. Measure your own platform and verify current trailer, mattress, and mechanism specifications before purchase.

Does a Murphy bed need a special mattress?

It may need a mattress designed around the bed’s approved thickness and weight limits. A standard mattress can work only when its dimensions, flexibility, weight, and retention method are approved for that bed frame.

What is safer, a piston lift system or a spring mechanism?

Neither is universally safer. Correct sizing, suitable anchoring, routine maintenance, controlled movement, and an effective safety locking mechanism matter more than whether the bed uses pistons or springs.

Can you leave bedding on a fold-down bed?

Often, yes, but bulky comforters and pillows can stop the cabinet from closing or increase mechanism load. The video shows the bed being raised with bedding in place, so test your own complete setup carefully.

How do you prevent moisture or odor under memory foam?

Keep the platform ventilated, use breathable bedding, open the bed periodically, and inspect for condensation during humid or cold-weather camping.

Is a DIY Murphy bed suitable for a child or pet area?

Treat a DIY Murphy bed as a moving mechanical structure, not a toy or play area. Use professional advice when wall structure, anchoring, locking hardware, or load calculations are uncertain.
